Tie rod hydraulic cylinder
Information

Dynamic Hydraulics is one of the leading Tie Rod Hydraulic cylinder manufacturers in India, known for producing strong and reliable hydraulic solutions for various industries. Our Tie rod cylinders are built with sturdy construction, making them suitable for heavy-duty uses in agriculture, construction machines, material handling, machine tools, and industrial automation.

As a reliable Tie Rod Hydraulic cylinder supplier, we offer products that deliver high efficiency, smooth performance, and long life. Each cylinder is made from quality materials, designed with precision, and tested carefully to ensure it performs well even in tough working conditions.

Share this product
Variants of Standard Hydraulic cylinder

Head Rectangular Flange Mounting (0101)
Cap Rectangular Flange Mounting (0201)
Foot Mounting (0301)
Intermediate Trunnion Mounting (0401)
Head Trunnion Mounting (0501)
Cap Trunnion Mounting (0601)
Cap Detachable Eye Mounting (0701)
Head Circular Flange Mounting (0801)
Cap Circular Flange Mounting (0901)

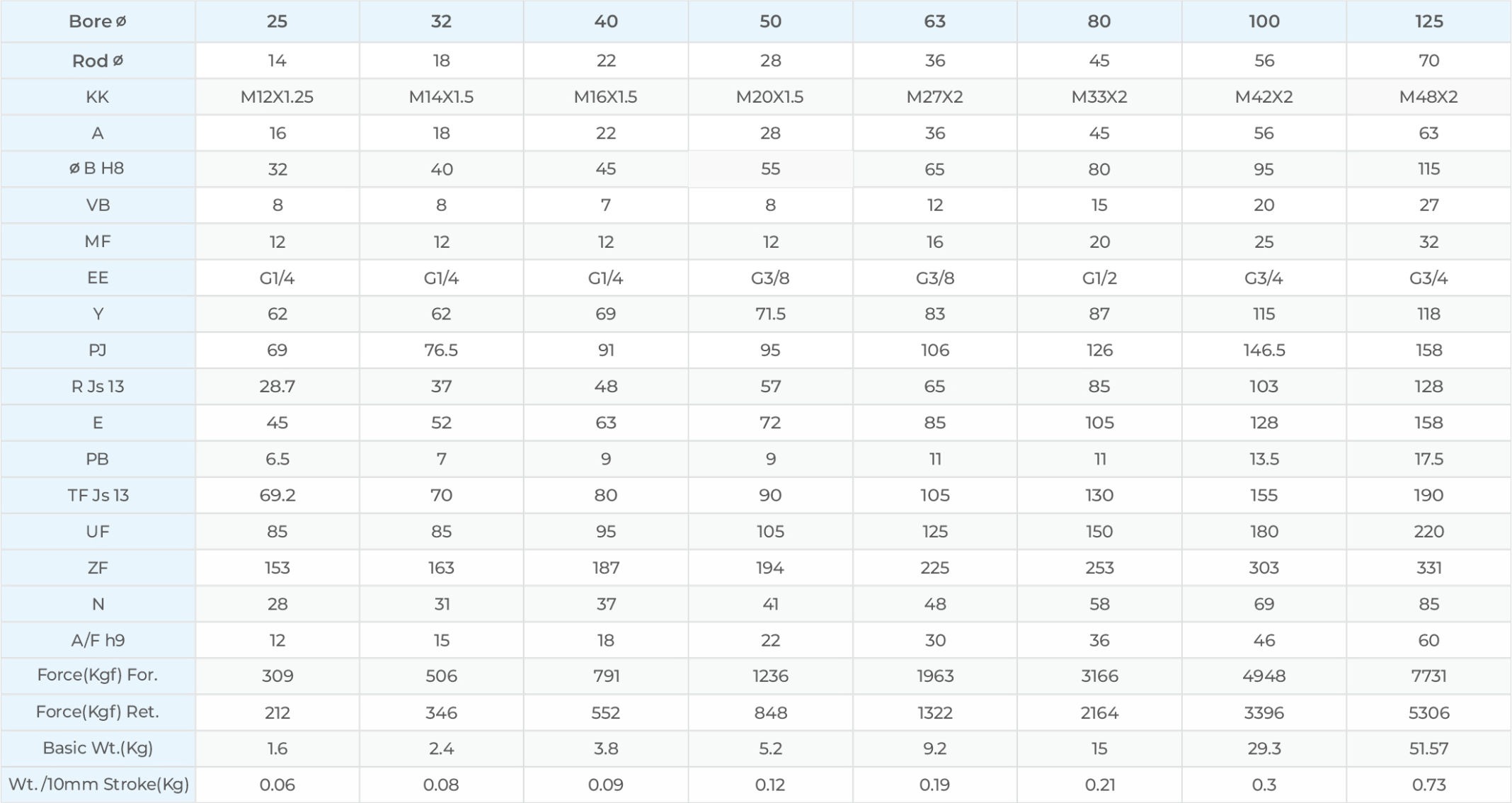

Head rectangular flange mounting (0101)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

Cap rectangular flange mounting (0201)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

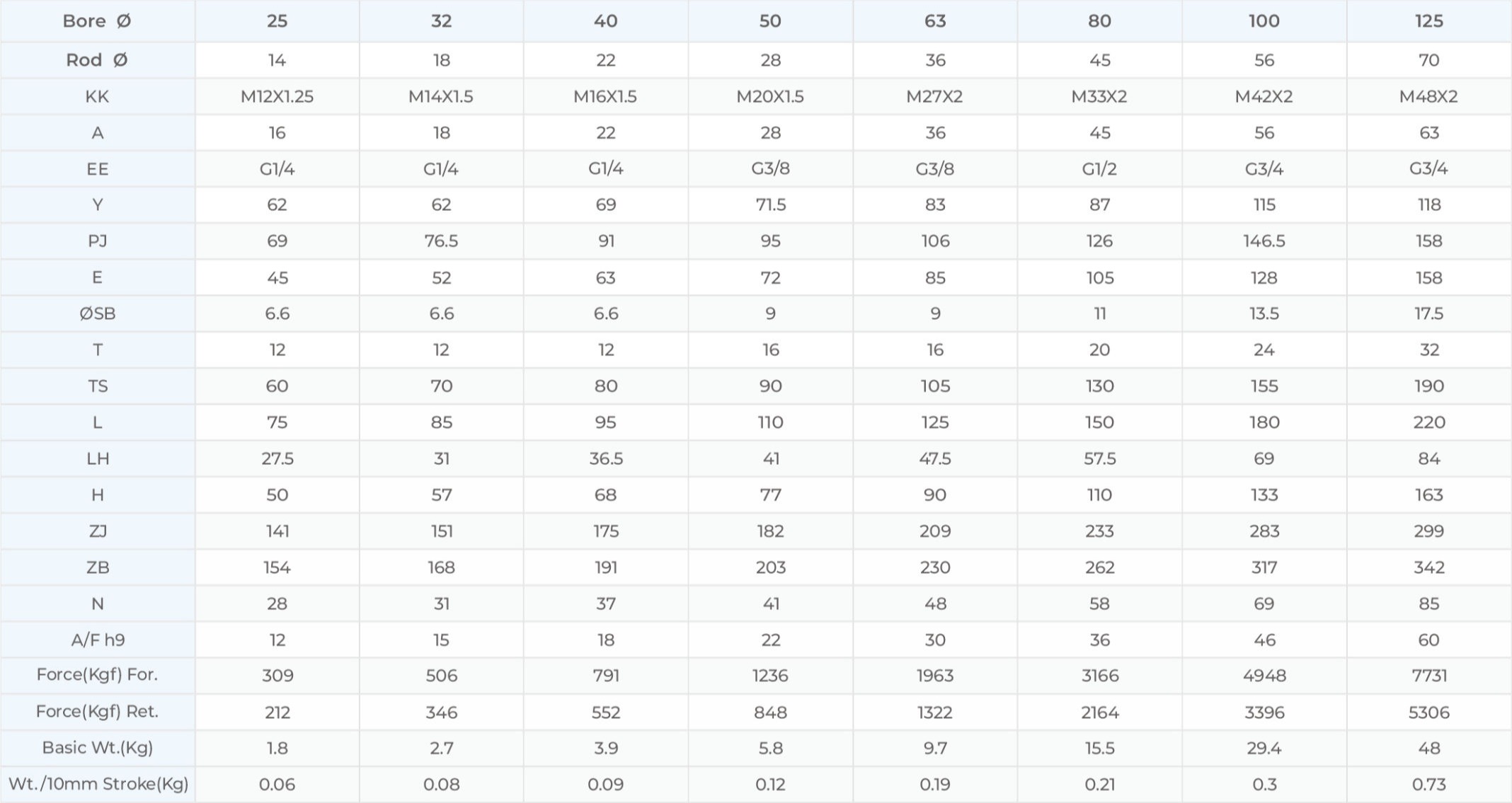

Foot mounting (0301)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

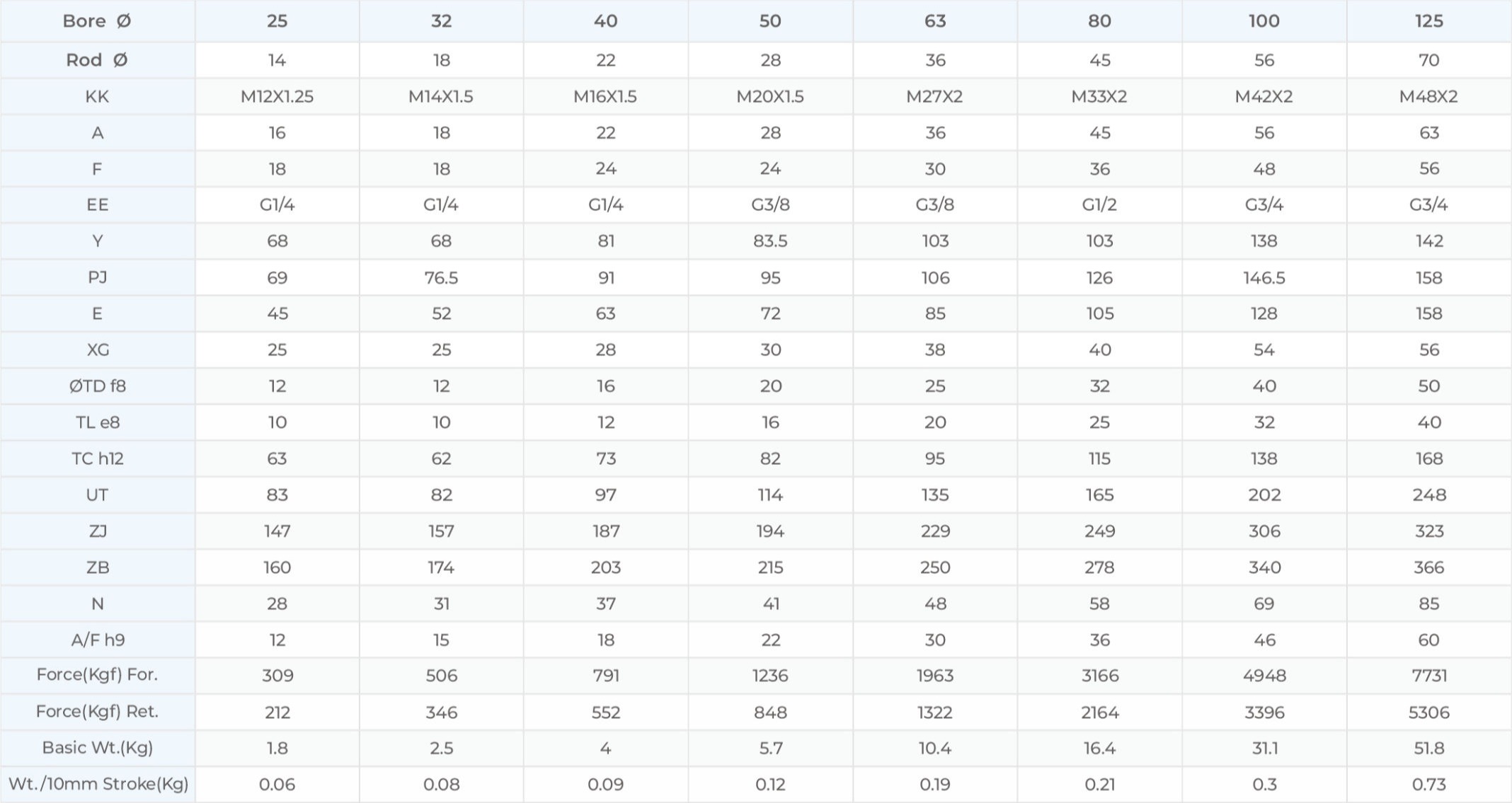

Intermediate trunnion mounting (0401)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss

Head trunnion mounting (0501)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

Cap trunnion mounting (0601)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

Cap detachable eye mounting (0701)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders




All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss

Head circular flange mounting(0801)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.

`

Cap circular flange mounting(0901)

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



All dimensions are in mm except otherwise specified.

tie rod hydraulic cylinder manufacturer in india, tie rod hydraulic cylinder suppliers in india, tie rod hydraulic cylinders



Note: Actual force may vary by 10% - 15% due to friction loss.
