Hydraulic power pack
Information

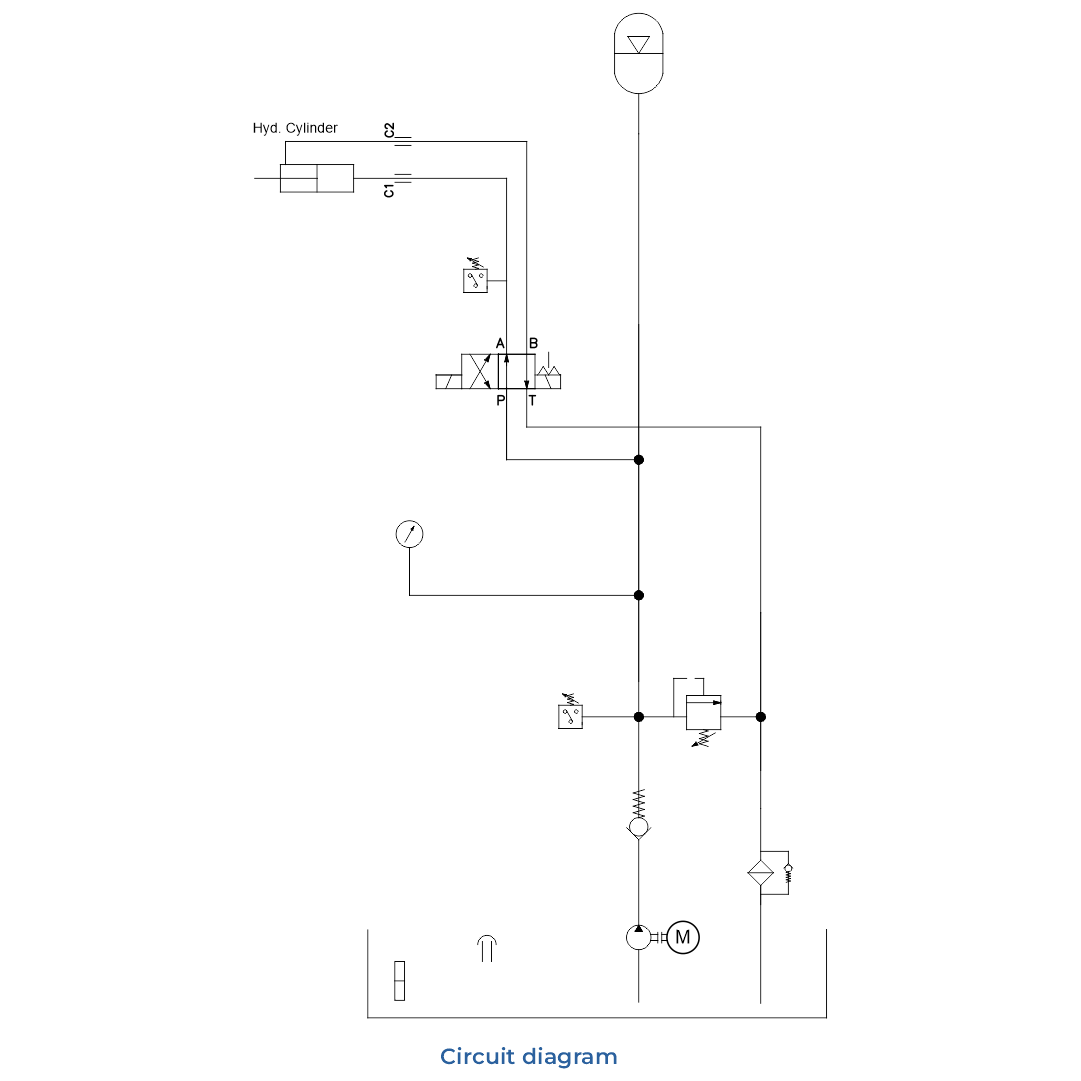

The Hydraulic power pack for clamping is a self-contained
unit that consists mainly of a motor, a tank/reservoir hydraulic
pump, valves, gauges, a filter, and a cooler. Using oil to transmit
power from one location to another.
Product Code: DPC01
Share this product

Hydraulics Specifications


Tank capacity

10, 25, 40 litre

Pump flow

3 - 5 LPM at 1440 rpm

Maximum pressure

Up to 150 Bar

Test pressure

Up to 180 Bar

Electric motor

1 - 2 HP

Pressure switch 1

For clamp signal

Pressure switch 2

For system pressure signal

(This can be used for motor ON/OFF)

DCV

Two position

Accumulator

160/320 cc (Leakage compensation)

Electrical Specifications


Nominal voltage

440 V / 50 Hz three phase

Control voltage

24 V DC / 240 V AC

Valve voltage

24 V DC / 230 V AC

Motor speed

1440 rpm

The direction of rotation

Clockwise

Motor rating

0.75 / 1.5 KW

Motor type

Three phase standard motor

Nominal current

3 A

Duty cycle maximum 50% intermittent operation

Level monitoring float switch - Optional
