Oil intensifier
Information

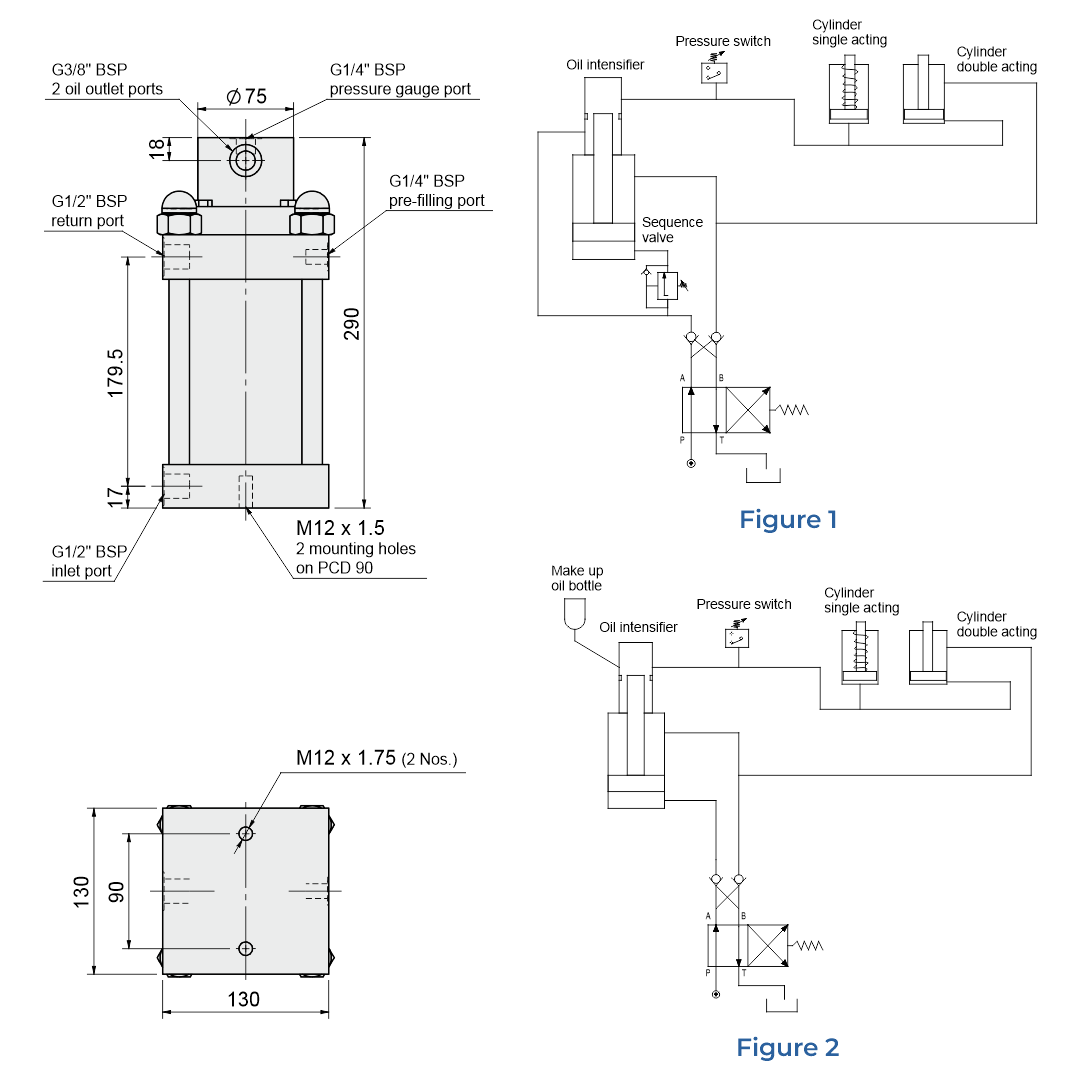

An Oil intensifier is used to boost the low-pressure output in the hydraulic high-power unit. If the oil output of an intensifier is sufficient for clamping elements, the circuit as shown in figure 1 can be used. If the oil requirement of clamping elements is more than the output of an intensifier, then the prefill circuit can be used as shown in figure 2. • Hardened and chromed alloy steel piston rods run longer with less wear • Special coating on the Oil intensifier helps to prevent rusting and scratching
Specifications
• Minimum operating pressure: 25 Bar • Maximum operating pressure: 70 Bar • Operating temperature: 10 - 70 °C
