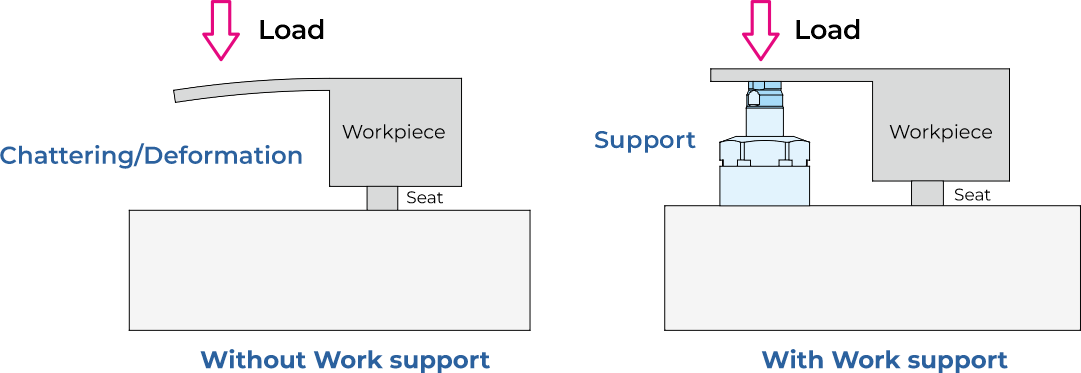

Work support provides solid adjustable support to parts and Work support

will work in most applications where part distortion, deformation, and chatter

conditions occur. They can eliminate or reduces most of the problems

caused by part movement during machining.

Available in two variants, Threaded body and Flange body Work support.

Work support capacity should be equal to or greater than 1.5 times clamping force plus machining force
Wiper seals reduce contamination of dust for the long run of Work support
Special coating on the cylinder body helps to prevent rusting and scratching

Minimum operating pressure: 25 Bar
Maximum operating pressure: 70 Bar
Operating temperature: 10 - 70 °C

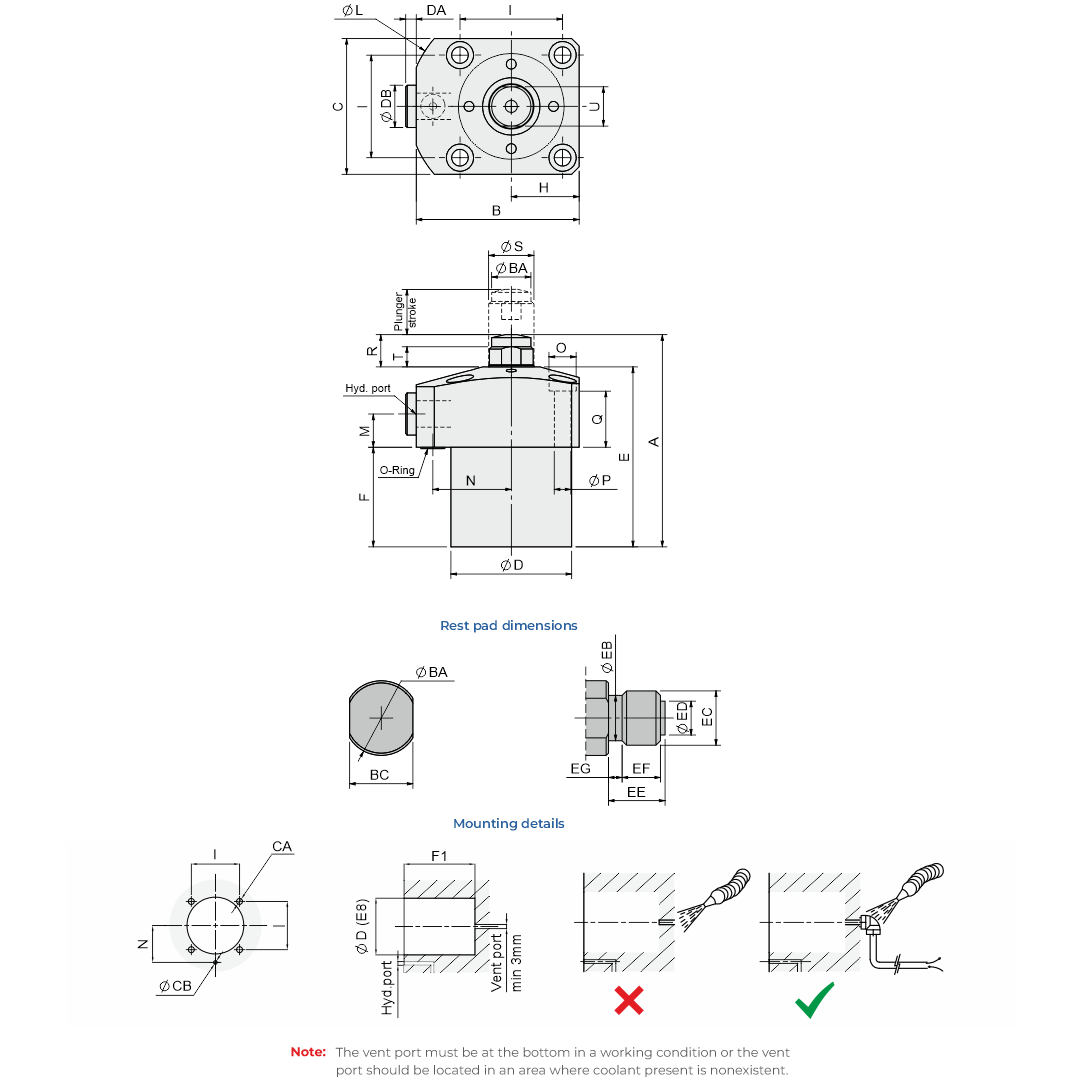

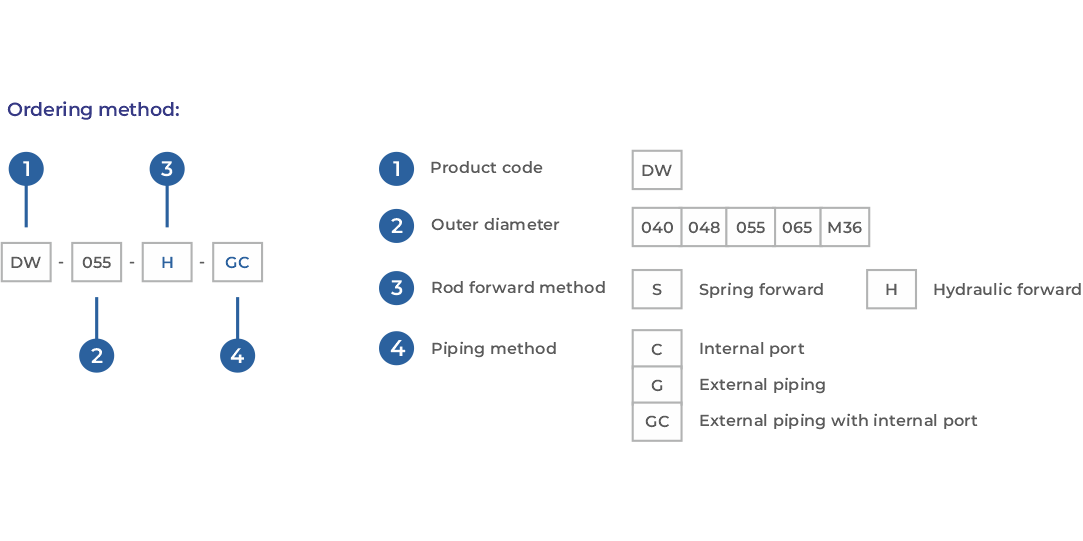

All dimensions are in mm except otherwise specified.

Model No.	A	B	C	ØD (E8)	E	F	H	I	ØL	M	N	ØO	ØP	Q	R	ØS	T	U	O - Ring (ID X THK)	Hyd. Port	ØBA	BC	ØEB	EC	ØED	EE	EF	EG	CA	ØCB	DA	ØDB	F1	Support force at 7 Mpa. (Kg)	Support force (formula) KN for operating pressure (Mpa)	Plunger stroke MM	Cyl. Volume (cm³)	Plunger spring force L N	Plunger spring force H N	Max. Operating pressure (Bar)	Min. Operating pressure (Bar)	Design pressure (Bar)	Operating Temp. (°C)	Weight (Kg.)
Model No.	A	B	C	ØD (E8)	E	F	H	I	ØL	M	N	ØO	ØP	Q	R	ØS	T	U	O - Ring (ID X THK)	Hyd. Port	ØBA	BC	ØEB	EC	ØED	EE	EF	EG	CA	ØCB	DA	ØDB	F1	Support force at 7 Mpa. (Kg)	Support force (formula) KN for operating pressure (Mpa)	Plunger stroke MM	Cyl. Volume (cm³)	Plunger spring force L N	Plunger spring force H N	Max. Operating pressure (Bar)	Min. Operating pressure (Bar)	Design pressure (Bar)	Operating Temp. (°C)	Weight (Kg.)
DW - 040	70	54	45	40	59.5	33	22.5	34	68	11	26	9	5.5	16	11	15	7	13	Ø 4 X 2	G1/8"	13	11	8.3	M10	6	10	7	2	M5	2	3.5	14	35	450	0.825 X P - 1.25	8	1.2	2.8 ~ 4.1	3.8 ~ 5.9	70	20	105	0 - 70	0.65
DW - 048	78	63	55	48	64.5	39	27.5	40	76	10	30	9	5.5	12	13.5	16	9.5	14	Ø 4 X 2	G1/8"	13	11	8.3	M10	6	10	7	2	M5	2	3.5	14	41	970	-	10	2	2.8 ~ 4.1	3.8 ~ 5.9	70	20	105	0 - 70	1.16
DW - 055	85	69	60	55	71	44	30	47	80	11	33.5	11	6.5	15	14	20	8	17	Ø 4 X 2	G1/8"	16.5	14	10	M12	7.5	12.5	8.5	3	M6	2.5	3.5	14	46	1420	2.36 X P - 2.28	12	3.3	4.7 ~ 7.8	6.2 ~ 11.0	70	20	105	0 - 70	1.45
DW - 065	102.5	81	70	65	87	56	35	55	94	11	40	11	6.5	15	16	22	10	19	Ø 6 X 2	G1/8"	16.5	14	10	M12	7.5	12.5	8.5	3	M6	2.5	3.5	14	58	2140	3.83 X P - 5.7	14	4.8	9.8 ~ 14.6	16.8 ~ 22.0	70	20	105	0 - 70	2.25
